BOWLS AND MOTORS ARE IN STOCK AND READY TO SHIP! WE SHIP INTERNATIONAL!

TWO PART ROTOR NOW AVAILABLE IN KIT FORM!
Upgrades available at a discount for all rotors and turnkey machines with exchange.
Retrofit rotors available for competetors machines.
Now shipping with new LARGER rotor. See New Rotor 2013 in the gallery for details!

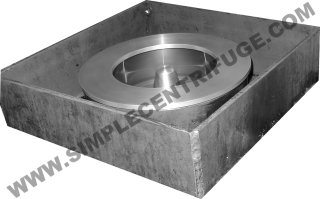

Simple Centrifuge turnkey

The Turnkey
Simple Centrifuge

Do you want to get up and running fast? The complete machine is the way. Cast aluminum construction. Pre-wired for 110v 60hz power. In stock an ready to ship.

Includes the two part rotor and feed cone. Uses the new taper mount.

Domestic version in-stock. 60 Hz only. Domestic only. Not for overseas. Baldor 1/3 HP 60Hz. Wired for 110V.
$1500 TURNKEY-US

International/Domestic version. In-stock. 110-220v 50/60 Hz Motor. Suitable for overseas and domestic. Shipped ready to wire for your location.
$1500 TURNKEY-INT

International/Domestic version WITHOUT Motor. Suitable for overseas and domestic. Requires a suitable motor 56J motor. See this link for motor details.
$1300 TURNKEY-NO-MOTOR


International/Domestic version with 3-Phase Motor and VFD. Suitable for overseas and domestic. Comes pre-assembled with 3 phase motor and a suitable variable frequency drive (VFD) to run motor. Please specify if you require 120V single phase input or 240V 1/3 phase input. Will require wiring. Inquire for details.
$1800 TURNKEY WITH 3 Phase Motor and VFD Package.






















Kit parts. Build your own and save!

click to enlarge
Industrial single phase motor
Click to enlarge

Click to enlarge

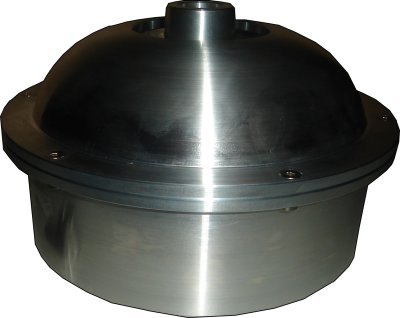

Precision machined two part centrifuge rotor with feed cone assembly. Machined from solid billets 6061-T6 Aluminum for good chemical resistance and strength. Precision balanced for long trouble-free life. Runs quiet and smooth. Bowl ships with detailed construction and assembly notes to build a complete centrifuge. Designed for 5/8" staft with 7/16-20 thread. See diagram.

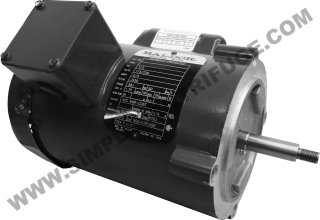

Industrial Baldor Motor. Single phase 110v or 220v. Available in 50/60Hz version for overseas use. Heavy duty bearings for long life. Capacitor start. Fan cooled. Precision matched to our centrifuge bowls. Overseas orders will ship 50/60Hz version.

Industrial Baldor Motor 3 Phase motor. Custom built, including double row angular contact upper bearing, cast iron end bells. Inverter ready. Include dual seals and vertical drain path. Suitable for US and Overseas! Requires 208 to 240V three phase power or VFD. Use VFD for variable speed. Based on our motor tests. Ideal for getting the full RPM overseas or running at higher RPM.

$650


In-stock

$218


60 Hz only. Domestic or overseas.

$350

In-stock. Domestic or overseas.


Upgrades and Retrofits
rotor
click to enlage
Upgrade any of our earlier rotors. Fits any early turnkey machine. Includes Precision machined two part centrifuge rotor with feed cone assembly. Machined from solid billets 6061-T6 Aluminum for good chemical resistance and strength. Precision balanced for long trouble-free life. Runs quiet and smooth. Ships with stainless steel quick taper and upgrade instructions. Add a second rotor to your existing turnkey machine. Two rotors allow you to have one in the machine with a clean one for quick changes with minimal downtime. Please call for details. Upgrade your Raw Power centrifuge from WVO Designs by replacing the cast open rotor with a precision machined two part centrifuge rotor and feed cone assembly. No more leaks into the motor. Machined from solid billets of 6061-T6 Aluminum for good chemical resistance and strength. Ships with stainless steel quick taper and upgrade instructions. Read more here.

$400 Trade up any SC rotor.

In-stock. *Requires trade in.

$500 when purchased with turnkey.

In-stock.

$650

Made to order.

Precision Machined Aluminum Centrifuge Bowl What happened to the original bowl/rotor? While the original one piece rotor works well it has been replaced with the two part rotor. The two part rotor has 4 times the capacity and a feed cone assembly that greatly improves the overall performance. We feel it is time to retire a good design for one that is much better.
  Results speak for themselves:
This is a side by side comparison of our technology. New two part rotor on the left compared to the same source oil processed through the one part rotor on the right. The new design is clearly superior. See this link for more details.
